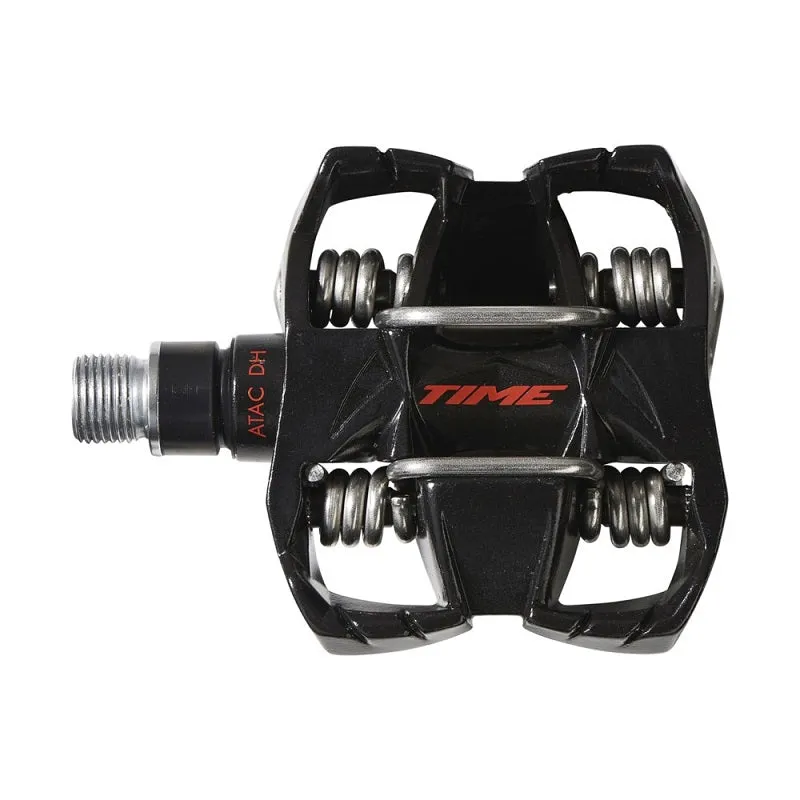

The DH 4 is built with an aluminum body and over sized axle to handle the roughest trail conditions and biggest descents. TIME's famous easy entry and exit system allows riders to easily put a foot down when needed and clip back in fast. The open, self-cleaning design keeps the pedal clean so its function is not compromised by dirt, debris, or mud.

FEATURES:

Rugged for downhill performance.
Easy pedal entry and exit to put foot down when needed.
Cleats included with all pedal purchases.

SPECIFICATIONS:

COLOR (PEDAL) Black
POWER MEASUREMENT Not Compatible
BODY COMPONENT Aluminum
CLEATS ATAC cleats
PEDAL STACK HEIGHT 19mm
ANGULAR FREEDOM n/a
CONTACT SURFACE AREA n/a
DISTANCE PEDAL SPINDLE / CRANK ARM 54mm
LATERAL FREEDOM 5mm
RELEASE ANGLE 10 with ATAC Easy cleats, 13 or 17 with ATAC cleats
TENSION no
THREADING 9/16 - 20 inch
ACCESSORIES ATAC cleats
INTENDED USE Enduro/Trail/DH
BEARINGS Steel
WEIGHT (G) 238
WEIGHT BASED ON per pedal
