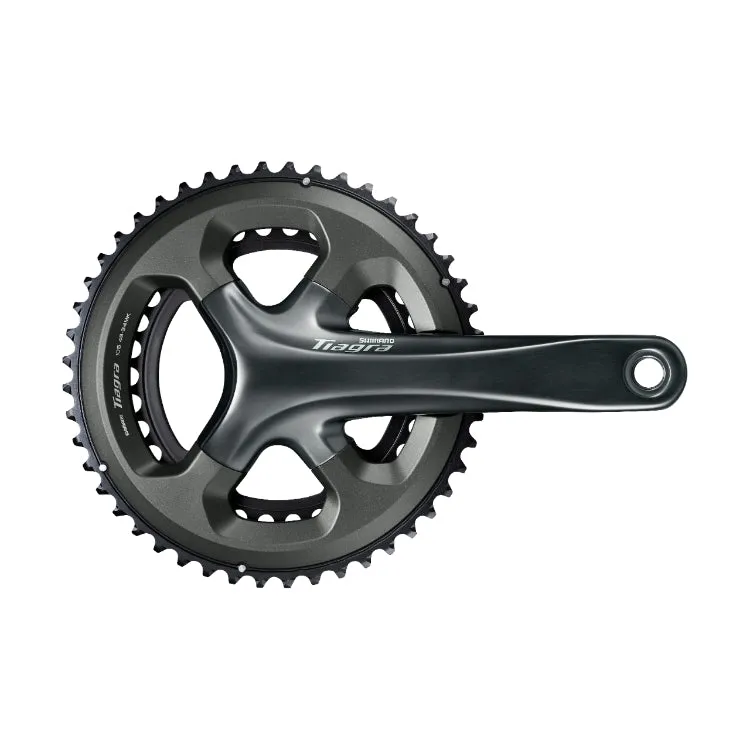

SHIMANO TIAGRA - Road Crankset - 2x10-speed

The new SHIMANO TIAGRA FC-4700 crank balances weight and efficiency without sacrificing stiffness. It is offered in 52-36, 50-34T, and a new 48-34T chainring options and 165, 170, 172.5, and 175mm crank arm lengths.

FEATURES
Optimum power transfer motivates riders to pedal further and faster

Optimal balance between stiffness and lightweight

Reinforced 4-arm construction

110 PCD

Optimized gear shape for HG-X chain

Gear combinations to match more riding styles

Additional gear combination: 48-34T

Gear combination: 50-34T, 52-36T

Crank arm length: 165, 170, 172.5, 175

PRODUCT SPECIFICATIONS

MODEL NO: FC-4700

SERIES: TIAGRA 4700 Series

Color: Series color

Threaded bottom bracket shell width (mm) 70:

2-PIECE CRANKSET:

Chainring combination: 48-34T 50-34T 52-36T

Compatible bottom bracket type Outboard:

Crank fixing screw included:

Crank arm length (mm 165:

Crank arm length (mm) 170:

Crank arm length (mm) 172.5:

Crank arm length (mm) 175:

Spider/Gear arms: 4

Optional chain guard Without chain/bash guard:

Recommended bottom bracket Press-fit: BB-RS500-PB

Recommended bottom bracket Threaded (normal): BB-RS501

Threaded bottom bracket shell width (mm) 68:

Q-factor (mm): 150

Chain line (mm): 43.5

Compatible chain: HG-X 10-speed

P.C.D. left / right (mm): 110

P.C.D. (mm): 110

Rear speeds 10
