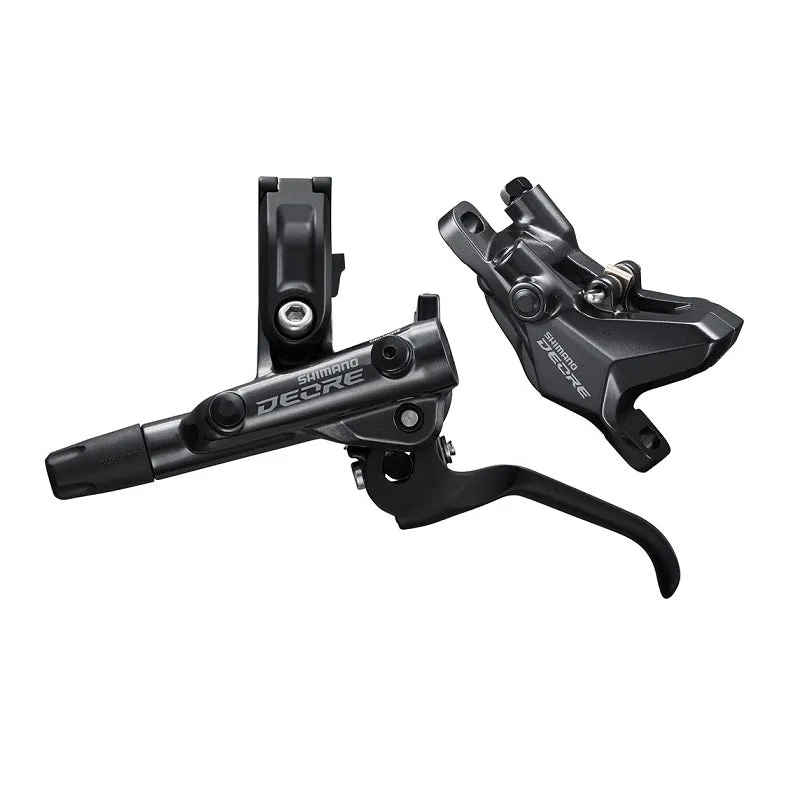

Shimano DEORE BR-M6100 Disc Brake 1000mm front

The DEORE BR-M6100 hydraulic 2-piston disc brake with 2-finger brake lever from Shimano fits seamlessly into the line-up of the new DEORE M6100 component group. Higher braking force with less effort on the fingers and extremely linear response to the lever movement.

Robust 2-piston disc brake for XC and marathon racers: DEORE BR-M6100 from Shimano
Molded from the same DNA as XTR, DEORE XT and SLX, the new M6100 series delivers Shimanos proven 12-speed technologies at DEORE level.

The DEORE M6100 brakes come in either an XC-specific two piston caliper or the trail/enduro four piston variant, both with a redesigned brake lever resulting in a stiffer mount, for better feedback and more power. The brake levers are equipped with Shimanos proven SERVO WAVE technology which results in quicker pad/rotor engagement, improved power and a shorter free stroke.

Features - Shimano DEORE BR-M6100 2-Piston Disc Brake 1000mm front
Quicker rebound between actions maintains rider concentration
Greater flexibility and action-optimized cockpit layout
Update brake lever shape
Seamless operation
High rigidity
2-Piston Caliper Brake
Caliper for Postmount Brake
Optimized ergonomic 2-finger brake lever
One-Way bleeding
I-Spec EV compatible - securing the shift lever on the brake lever
Rotors in 140, 160, 180, 203mm are available separately!

Product features

Use: MTB
Group: DEORE M6100
Model: BR-M6100 (front)
Brake type: Hydraulic Disc-Brake
Brake lever: BL-M6100
Lever length: 2-Finger
Mount: left
Clamp: open
Mounting system: I-Spec EV (I-Spec EV is not compatible with I-Spec II and I-Spec B shifters!)
Reach adjustment: Yes, with tool
Caliper: BR-M6100 (2-Piston)
Brake mounting: Postmount
Brake pads: G03S Resin without Fin
Brake hose: SM-BH90-SS
Brake hose length: front 1000mm (shortable)
Cable connection: Straight brake lever / Straight caliper
One-Way bleeding: Yes
Brake fluid: Mineral oil
Recommended brake rotor: SM-RT64, SM-RT66
